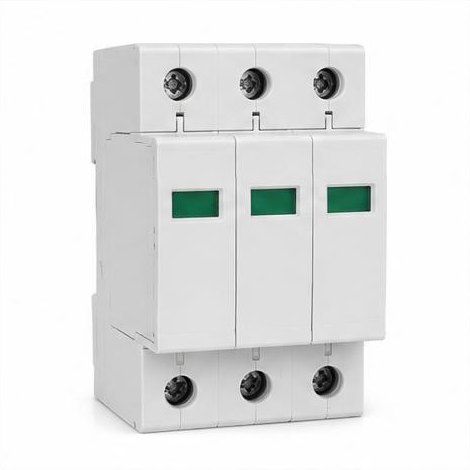

Surge Protection Device Type 2 - 40kA - 3P+N SPD-T2-40KA-3PN — illustrative product image for Battery Energy Storage Systems; actual product may vary — UAE supplier — Allied Industrial Solutions F.Z.E

Illustrative product image — actual product appearance may vary.

SPDsurge protectionType 240kA3 phaseIEC 61643UAEdistribution board
New 2025/2026 ProductBattery Energy Storage Systems

Surge Protection Device Type 2 - 40kA - 3P+N — ABB / Schneider | UAE Supplier

Brand: ABB / SchneiderModel: SPD-T2-40KA-3PNContact for Pricing

Type 2 surge protection device, 40kA, 3 pole + neutral, 275V/440V. IEC 61643-11 / EN 61643-11. For protection of LV distribution boards in UAE against overvoltage.

Pricing is available by quote request only. We respond within 24 hours.
WhatsApp Enquiry

Key Features

  • Type 2 (Class C) surge protection for LV boards
  • 40kA maximum discharge current (Imax) per pole
  • 3P+N configuration for comprehensive 3-phase protection
  • Voltage protection level (Up) below 1.5kV
  • Standard 35mm DIN rail mounting for easy installation
  • Certified to IEC 61643-11 and EN 61643-11 standards

About this product

The Type 2 Surge Protection Device (SPD) is engineered to safeguard Low Voltage distribution boards from transient overvoltages caused by switching or indirect lightning strikes. Designed for 3-phase plus neutral (3P+N) systems, it handles a maximum discharge current of 40kA (8/20µs). This unit is essential for protecting sensitive electronic equipment and renewable energy systems within the UAE's electrical infrastructure, including distribution boards where Type 2 surge protection is specified. The device is designed for easy 35mm DIN rail mounting and operates at nominal voltages of 275V (L-N) or 440V (L-L). It provides a voltage protection level of less than 1.5kV, ensuring that downstream components are not exposed to damaging voltage spikes. Compliant with IEC 61643-11 and EN 61643-11, this SPD is a critical safety component for ensuring the longevity and reliability of electrical installations in residential and commercial sectors.

Technical Specifications

TypeType 2 (Class C per IEC 61643-11)
Poles3P + N
Voltage275V (L-N) / 440V (L-L)
MountingDIN rail 35mm
StandardIEC 61643-11 / EN 61643-11
Nominal Discharge In20kA
Voltage Protection Level< 1.5kV
Max Discharge Current Imax40kA (8/20us)
