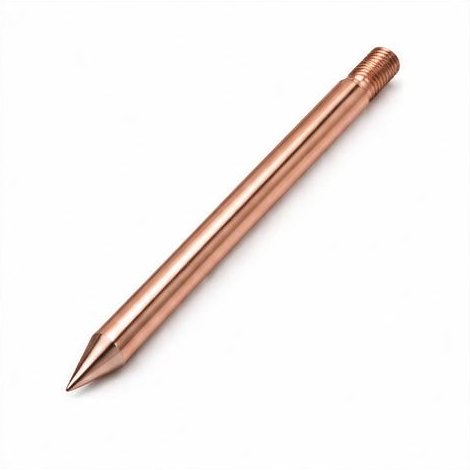

Copper-Bonded Earth Rod 5/8 Inch x 8ft - nVent ERICO 615880 — illustrative product image for Earthing & Lightning Protection; actual product may vary — UAE supplier — Allied Industrial Solutions F.Z.E

Illustrative product image — actual product appearance may vary.

earth rodground rodcopper bondednVent ERICO615880earthingUAEDubai

Copper-Bonded Earth Rod 5/8 Inch x 8ft - nVent ERICO — nVent ERICO | UAE Supplier

Brand: nVent ERICOModel: 615880In Stock

Copper-bonded ground rod 5/8 inch (15.9mm) diameter, 8ft (2.44m) length, 10 mil electrolytic copper plating. UL 467 / IEC EN 62561-2. For earthing systems in UAE.

Pricing is available by quote request only. We respond within 24 hours.
WhatsApp Enquiry

Key Features

  • 8ft (2.44m) length suitable for standard earthing grids
  • High carbon steel core with 80,000 psi tensile strength
  • 10 mil electrolytic copper plating ensures conductivity
  • Listed standards: UL 467, IEC EN 62561-2, and CSA C22.2
  • Resistant to corrosion in harsh soil environments

About this product

This 8-foot copper-bonded earth rod is a critical component for grounding systems in Dubai and the wider UAE, engineered to provide a low-resistance path to the ground. Constructed with a high-carbon steel core and a 10 mil electrolytic copper plating, it combines the structural strength of steel with the superior conductivity of copper. The rod boasts a tensile strength of 80,000 psi, ensuring it can withstand the mechanical stresses of driving into compacted soils without bending or fracturing. Adhering to UL 467, IEC EN 62561-2, and CSA C22.2 standards, this rod is versatile enough for diverse earthing and lightning protection applications. The 2.44-meter length is a standard choice for typical residential and commercial electrical installations. Its copper-bonded construction is specifically designed to resist the corrosive elements found in the soil, providing a lifespan that significantly exceeds that of galvanized alternatives in saline or aggressive environments.

Technical Specifications

CoreHigh carbon steel
Length8ft (2.44m)
Plating10 mil electrolytic copper
Diameter5/8 inch (15.9mm)
StandardUL 467 / IEC EN 62561-2 / CSA C22.2
Tensile Strength80,000 psi
