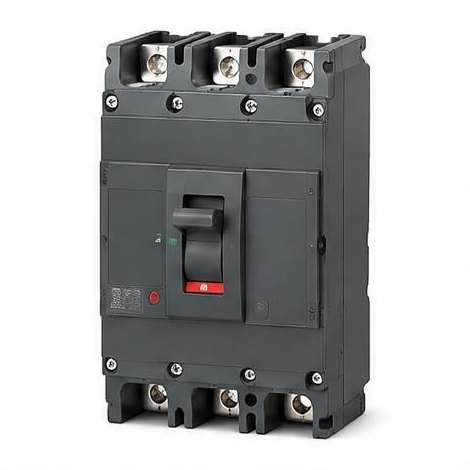

ABB MCCB Tmax XT1B 3P 160A - 18kA XT1B160 3P — illustrative product image for Enclosed Switches & Circuit Breakers; actual product may vary — UAE supplier — Allied Industrial Solutions F.Z.E

Illustrative product image — actual product appearance may vary.

ABBMCCBTmax XT1160A18kAIEC 60947UAEpanel board

ABB MCCB Tmax XT1B 3P 160A - 18kA — ABB | UAE Supplier

Brand: ABBModel: XT1B160 3PContact for Pricing

ABB Tmax XT1 moulded case circuit breaker, 3 pole, 16-160A, 18kA breaking capacity at 415V AC. IEC 60947-2. Smallest XT frame. For industrial panel boards in UAE.

Pricing is available by quote request only. We respond within 24 hours.
WhatsApp Enquiry

Key Features

  • Adjustable rated current from 16A to 160A
  • Compact Tmax XT1 frame with 76.5mm 3P width
  • 18kA breaking capacity at 415V AC operation
  • Thermomagnetic trip unit for reliable protection
  • Includes anti-forgery hologram for authenticity verification
  • Compliant with international IEC 60947-2 standards

About this product

The ABB Tmax XT1B is a 3-pole moulded case circuit breaker (MCCB) representing the most compact frame size in the Tmax XT family. This device is designed for industrial panel boards in the UAE, providing versatile protection with an adjustable thermomagnetic trip unit covering ranges from 16A up to 160A. It is specifically built for space-constrained installations, featuring a 76.5mm width. Operating at a 18kA breaking capacity at 415V AC, the XT1B is compliant with IEC 60947-2 standards. For security and quality assurance, each unit includes an anti-forgery hologram. Whether used for motor protection or general distribution, the XT1 frame offers a balance of high performance and compact dimensions for modern low-voltage electrical systems.

Technical Specifications

FrameTmax XT1
Poles3P (4P also available)
Width3P: 76.5mm
Voltage415V AC / 250V DC
HologramAnti-forgery hologram included
StandardIEC 60947-2
Trip UnitThermomagnetic
Rated Current16A to 160A (adjustable)
Breaking Capacity 415V18kA
