Huawei SUN2000-10KTL-M1 10kW Solar Inverter SUN2000-10KTL-M1 — illustrative product image for Solar Energy Solutions; actual product may vary — UAE supplier — Allied Industrial Solutions F.Z.E

Illustrative product image — actual product appearance may vary.

HuaweiSUN200010kWsolar inverteron-grid3-phaseUAEMPPT
Electrical ProductSolar Energy Solutions

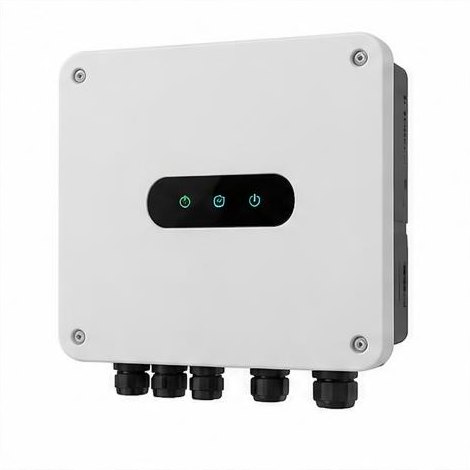

Huawei SUN2000-10KTL-M1 10kW Solar Inverter — Huawei | UAE Supplier

Brand: HuaweiModel: SUN2000-10KTL-M1Contact for Pricing

Huawei SUN2000 10kW three-phase string inverter. MPPT voltage 200-1000V DC, 3 MPPT, IP65. IEC 62109. For UAE commercial rooftop on-grid solar systems.

Pricing is available by quote request only. We respond within 24 hours.
WhatsApp Enquiry

Key Features

  • 10kW three-phase output for commercial on-grid solar systems
  • High maximum efficiency of 98.6% for optimal energy harvest
  • 3 independent MPPT channels with 200-1000V DC range
  • IP65 rated enclosure for reliable outdoor installation
  • Compliant with IEC 62109-1 and IEC 62109-2 standards
  • Flexible communication via RS485, USB, and optional WiFi/4G

About this product

The Huawei SUN2000-10KTL-M1 is a high-efficiency three-phase string inverter designed for on-grid solar applications in the UAE. With a power output of 10kW and a maximum efficiency of 98.6%, this inverter is ideal for commercial rooftop systems seeking to maximize energy yield. It features three independent MPPT channels and a wide MPPT voltage range of 200-1000V DC, allowing for flexible string design and optimized performance even in partial shading conditions. This inverter is built to meet IEC 62109-1/2 standards and is housed in an IP65-rated enclosure, providing durability against the elements. Standard communication is handled through RS485 and USB, with optional modules available for WiFi or 4G connectivity to facilitate remote monitoring. The system supports a maximum input voltage of 1100V DC, providing a robust interface between PV arrays and the 400V AC 50Hz electrical grid.

Technical Specifications

TypeString inverter, on-grid
Power10kW
Output3-phase 400V AC 50Hz
StandardIEC 62109-1/2
IP RatingIP65
Efficiency98.6% (max)
CommunicationRS485 + USB + optional WiFi/4G
Input Voltage200-1000V DC
MPPT Channels3 MPPT
Max Input Voltage1100V DC
